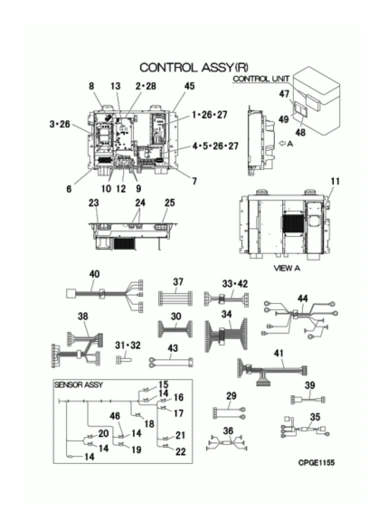

E: Steuereinheit rechts
Bestellcode: FDC530KXZE3
Servicecode: FDC530KXZE3/1
| Position | Bezeichnung | Materialnummer |
|---|---|---|
| 2 | Inverter-Platine PCB505A383FD | 20020119 |
| 3 | Entstörfilterplatine PCB505A286 | 20013968 |
| 4-5 | Platine PCB505A285BB | 20020121 |
| 5 | Sicherung SSA564A149AC | 20013812 |
| 6 | Klemmenblock SSA561B712A | M88825 |
| 7 | Klemmenblock SSA561B693AW | 20013970 |
| 8 | Relais SSA521A727A | 20001999 |
| 9 | Kondensator SSA552F983 | 20002019 |
| 10 | Widerstand SSA553A661KP | 20002018 |
| 11 | Drosselspule SSA554B145 | 20013971 |
| 12 | Stromsensor SSA551J030A | 20002192 |
| 13 | Sensor BG THO-P1 SSA551A192DA | 20016913 |
| 14 | Sensor BG THO-A,D1,R1,S PSA551A039W | 20020123 |
| 15 | Sensor BG THO-C2 PSA551A039K | 20020124 |
| 16 | Sensor BG THO-D2 PSA551A039L | 20020125 |
| 17 | Sensor BG THO-R2 PSA551A039M | 20020126 |
| 18 | Sensor BG THO-R3 PSA551A039N | 20020127 |
| 19 | Sensor BG THO-R4 PSA551A039P | 20020128 |
| 20 | Sensor BG THO-SC PSA551A039R | 20020129 |
| 21 | Sensor BG THO-C1 PSA551A039S | 20020130 |
| 22 | Sensor BG THO-H PSA551A039T | 20020131 |
| 23 | Durchführung PCB947B002 | 20013973 |
| 24 | Durchführung PCB947B003 | 20013974 |
| 25 | Durchführung PCB947B006 | 20013975 |
| 26 | Halterung SSA937G103D | 20013809 |
| 27 | Halterung SSA937G079B | 20013976 |
| 28 | Halterung SSA937G103C | 20013977 |
| 29 | Kabelsatz PCB504A422B | 20013982 |
| 30 | Kabelsatz PCB504A422Y | 20013985 |
| 31 | Kabelsatz PCB504A284BB | M70681 |
| 32 | Kabelsatz PCB504A284BC | M88366 |
| 33 | Kabelsatz PCB504A441Z | 20020168 |
| 34 | Kabelsatz PCB504A424BL | 20020169 |
| 35 | Kabelsatz PCB504A423BR | 20020170 |
| 36 | Kabelsatz PCB504A423BB | 20020171 |
| 37 | Kabelsatz PCB504A441AA | 20020172 |
| 38 | Kabelsatz PCB504A424CG | 20020173 |
| 39 | Kabelsatz PCB504A424BY | 20020174 |
| 41 | Kabelsatz PCB504A424BW | 20020175 |
| 42 | Kabelsatz PCB504A422BN | 20013992 |
| 43 | Kabelsatz PCB504A441N | 20020176 |
| 44 | Kabelsatz PCB504A422BT | 20020177 |
| 45 | Schaltkasten BG PCB142A772B | 20020034 |
| 46 | Feder PSA941F001 | 1222492 |
| 47-49 | Schaltkastendeckel BG PCB142A797B | 20020099 |
