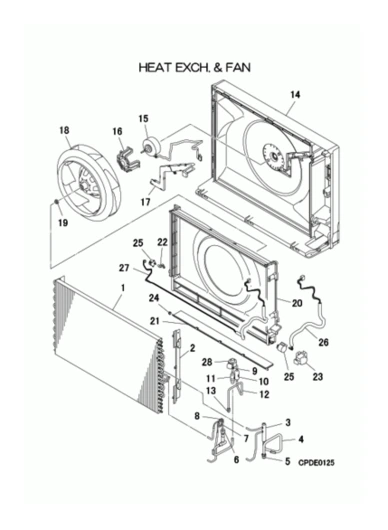

B: Wärmeübertrager & Ventilator
Bestellcode: FDFW28KXZE3-W
Servicecode: FDFW28KXZE3-W/1
| Position | Bezeichnung | Materialnummer |
|---|---|---|
| 1-13 | Wärmeübertrager PGF301A006A | 20019982 |
| 2 | Halterung RFB116A003 | 20002409 |
| 4-5 | Leitung BG RFB321A034 | 20002444 |
| 5 | Einschraubstutzen SSA323F091 | 20007198 |
| 6-8 | Verteiler BG PGF315A002 | 20019983 |
| 9 | Expansionsventilkörper SSA387F086 | 20002825 |
| 10 | Filter SSA357A005A | M57775 |
| 11 | Filter SSA357A005C | M57776 |
| 12-13 | Leitung BG PGF321A014 | 20019984 |
| 13 | Einschraubstutzen SSA323F091A | 20007075 |
| 14 | Bodenplatte RFB111A001B | 20019985 |
| 15 | Motor SSA512T118 | 1222628 |
| 16 | Motorabdeckung RFB116A004 | M81704 |
| 17 | Kabelbaumabdeckung RFB129A001B | 20002416 |
| 18 | Ventilatorlaufrad SSA431J023 | M70441 |
| 19 | Mutter SSA914B007AC | 20002417 |
| 20 | Ansaugtrichter RFB433A003B | 20019986 |
| 21 | Klapper BG RFB434A001 | 20002419 |
| 22 | Klappenhalterung RFB129A012 | 20002420 |
| 23 | Motorabdeckung RFB129A003 | 20002421 |
| 24 | Manschette RKW935C200 | M81169 |
| 25 | Stellmotor SSA512T158 | 1225654 |
| 26 | Kabelbaum BG RFB504A001F | 20019987 |
| 27 | Kabelbaum BG RFB504A001G | 20019988 |
| 28 | Magnetventilspule SSA382F228 | 20019989 |
