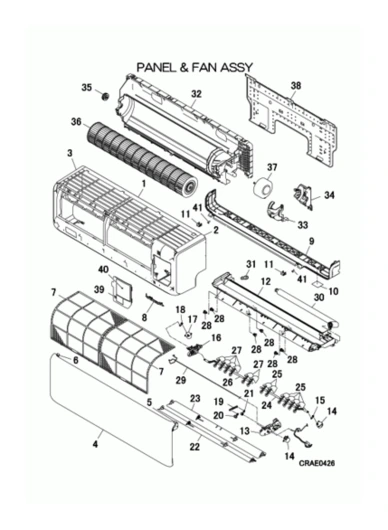

A: Verkleidung und Ventilator
Bestellcode: SRK20ZT-WF
Servicecode: SRK20ZT-WF/1
| Position | Bezeichnung | Materialnummer |
|---|---|---|
| 1-8 | Frontverkleidung BG RLK102A001 | 20020324 |
| 2 | Mole re. RLK133A001 | 20020325 |
| 3 | Mole li. RLK133A002 | 20020326 |
| 4-6 | Lufteinlassklappe BG RLK435A003 | 20020327 |
| 5 | Paneelarm re. RLK129A020 | 20020328 |
| 6 | Paneelarm li. RLK129A021 | 20020329 |
| 7 | Luftfilter RLK437A001 | 20020330 |
| 8 | Anzeigefenster RLK133A003 | 20020331 |
| 9 | Bodenverkleidung RLK132A008 | 20020333 |
| 9-11 | Bodenverkleidung BG RLK132A007 | 20020332 |
| 11 | Kappe RLK129A022 | 20020334 |
| 12-31 | Luftauslassgitter BG RLK435A001 | 20020335 |
| 13-15 | Halterung BG re. RLK129A008 | 20020336 |
| 14 | Stellmotor SSA512T158 | 1225654 |
| 16-18 | Halterung BG li. RLK129A010 | 20020337 |
| 19-21 | Verbindungsstück BG RLK144A001 | 20020338 |
| 22 | Klappe ob. RLK436A001 | 20020339 |
| 23 | Klappe un. RLK436A002 | 20020340 |
| 24-25 | Lamelle BG re. RLK436A003 | 20020341 |
| 26-27 | Lamelle BG li. RLK436A004 | 20020342 |
| 28 | Clip RLD129A021 | 1222417 |
| 29 | Kabelbaum BG RLK504A003 | 20020343 |
| 30 | Kondensatschlauch SSA423A114 | 1225356 |
| 31 | Stecker SSA326A047 | M81449 |
| 32 | Halterung BG RLK111A001 | 20020344 |
| 33 | Abdeckung BG ob. RLK129A001 | 20020345 |
| 34 | Abdeckung BG un. RLK129A003 | 20020346 |
| 35 | Gleitlager SSA923C136Z | 20007065 |
| 36 | Ventilatorlaufrad SSA431G063 | 20020347 |
| 37 | Motor SSA512T182A | 20020348 |
| 38 | Montageplatte RLK032A001 | 20020349 |
| 39-40 | Klemmenabdeckung RLK132A009 | 20020350 |
| 41 | Schraube SSA913A007 | 1222870 |
