© STULZ GmbH

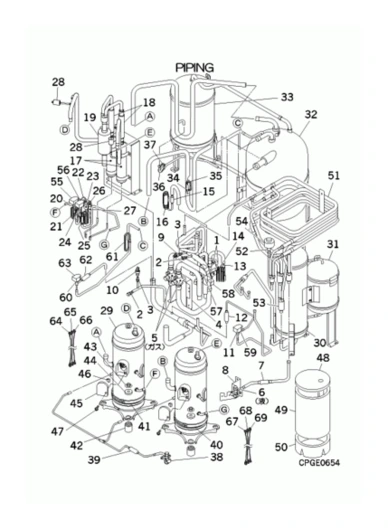

D: Leitungen
Bestellcode: FDC560KXRE6
Servicecode: FDC560KXRE6/1
| Position | Bezeichnung | Materialnummer |
|---|---|---|
| 1 | 4-Wege-Ventil SSA382C079 | M67779 |
| 2 | Serviceventil SSA327B067 | M70656 |
| 5 | Serviceventil SSA381A855 | M70745 |
| 6 | Serviceventil PCB381A077A | M75321 |
| 7 | Filter SSA357A005D | 1225474 |
| 9 | Niederdrucksensor SSA551D022F | M70748 |
| 10 | Hochdrucksensor SSA551D024A | M57211 |
| 11 | 2-Wege-Ventil SSA382A249A | M70653 |
| 12 | Filter SSA357A005T | M57741 |
| 15 | Filter SSA357A005C | M57776 |
| 18 | Rückschlagventil SSA385A051 | M70750 |
| 20-27 | Leitung BG PCB321F943A | 1225903 |
| 23 | Filter SSA357A048A | M70751 |
| 24 | 2-Wege-Ventil SSA382A219 | M88388 |
| 28 | Hochdruckschalter SSA532A032NA | M70752 |
| 29 | Verdichter BG AGT201A827HD | M70757 |
| 30 | Flüssigkeitssammler SSA352A111W | M88464 |
| 31 | Flüssigkeitssammler SSA352A111Z | M88465 |
| 35 | Kapillarrohr PCB315B303D | 1225760 |
| 36-37 | Leitung BG PCB315B809 | 1222579 |
| 37 | Kapillarrohr PCB315B303C | 1225468 |
| 38 | Serviceventil PCB381A092 | 1221846 |
| 40 | Ölwannenheizung PCA541B021AT | M70754 |
| 41 | Ölwannenheizung PCA541B021AF | M67754 |
| 42 | Gummidämpfer SSA941C158A | M70078 |
| 43 | Flanschmutter SSA914C013 | 20001068 |
| 44 | Unterlegscheibe SSA915H039A | 1222889 |
| 45 | Klemmenblockabdeckung ALA947K001 | M88350 |
| 46 | Klemmenblock ASA561B002 | M88351 |
| 48 | Verdichterisolierung PCA151D034 | M88440 |
| 49 | Isolierung PCB151D088A | M88400 |
| 50 | Isolierung PCB151D100 | M88399 |
| 52 | Elektr. Expansionsventil SSA387F045A | M68034 |
| 53 | Filter SSA357A024C | M67033 |
| 54 | Magnetventilspule SSA382F212AB | 20002277 |
| 55 | Magnetventilspule BG PCB382F119D | M70761 |
| 56 | Magnetventilspule PCB382F119F | M70762 |
| 57 | Magnetventilspule BG PCB382F119M | M75315 |
| 58 | Magnetventilspule BG PCB382F119P | M75316 |
| 59 | Magnetventilspule BG PCB382F119G | M75317 |
| 60 | 2-Wege-Ventil SSA382A273 | 1221847 |
| 60-62 | Ventil BG PCB382A203A | 1221441 |
| 62 | Filter SSA357A005A | M57775 |
| 63 | Magnetventilspule PCB382F119K | M70766 |
| 64 | Kabel PCA504A262HR | M88401 |
| 65 | Kabel PCA504A262KR | M88403 |
| 66 | Kabel PCA504A262MR | M88404 |
| 67 | Kabelsatz PCB504A308P | M88405 |
| 68 | Kabelsatz PCB504A308R | M88406 |
| 69 | Kabelsatz PCB504A308S | M88407 |
