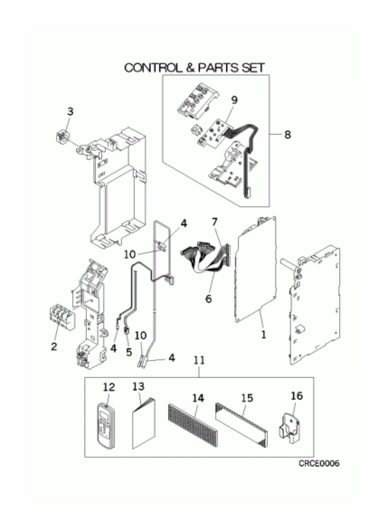

C: Steuereinheit und Teilesatz
Bestellcode: SRF25ZJX-S
Servicecode: SRF25ZJX-S/1
| Position | Bezeichnung | Materialnummer |
|---|---|---|
| 1 | Steuerplatine RKY505A001BD | M75423 |
| 2 | Klemmenblock SSA561B702B | M81158 |
| 3 | Entstörfilter SSA554D183 | 1220817 |
| 4 | Sensor BG TH1,TH2.1-2.2 SSA551A223C | M70447 |
| 5 | Feuchtefühler SSA551B017B | M70449 |
| 6 | Kabelbaum BG RFB504A003 | 20002425 |
| 7 | Kabelbaum BG RFB504A004 | 20002426 |
| 8 | Display BG RFB503A001 | M70452 |
| 9 | Displayplatine RFB505A001 | M70453 |
| 10 | Feder PSA941F001 | 1222492 |
| 12 | Fernbedienung RKX502A001K | M70454 |
| 14 | Photokatalyse-Filter RKT437A005 | M57862 |
| 15 | BioClean-Filter RKT437A011 | M67835 |
| 16 | Halterung RKN032A002C | M81160 |
