© STULZ GmbH

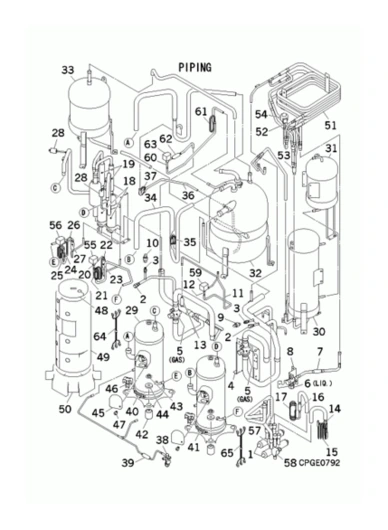

D: Leitungen
Bestellcode: FDC560KXRE6
Servicecode: FDC560KXRE6/D
| Position | Bezeichnung | Materialnummer |
|---|---|---|
| 1 | 4-Wege-Ventil SSA382C095 | M88959 |
| 2 | Serviceventil SSA327B067 | M70656 |
| 5 | Serviceventil SSA381A748 | M88806 |
| 6 | Serviceventil PCB381A077A | M75321 |
| 7 | Filter SSA357A005D | 1225474 |
| 9 | Niederdrucksensor SSA551D022F | M70748 |
| 10 | Hochdrucksensor SSA551D024A | M57211 |
| 12 | 2-Wege-Ventil SSA382A249A | M70653 |
| 13 | Filter SSA357A005T | M57741 |
| 14 | Filter SSA357A005C | M57776 |
| 18-27 | Ölabscheider PCB354A055 | 1221845 |
| 18-28 | Ölabscheider BG PCB354A054 | 1221509 |
| 19 | Rückschlagventil SSA385A051 | M70750 |
| 23 | Filter SSA357A053A | M88807 |
| 24 | 2-Wege-Ventil SSA382A219 | M88388 |
| 28 | Hochdruckschalter SSA532A085NB | M88809 |
| 29 | Verdichter BG AGT201A827HD | M70757 |
| 30 | Flüssigkeitssammler BG SSA352A129B | 1220035 |
| 31 | Flüssigkeitssammler BG SSA352A129D | 1220036 |
| 35 | Kapillarrohr PCB315B303D | 1225760 |
| 36-37 | Leitung BG PCB315B809 | 1222579 |
| 37 | Kapillarrohr PCB315B303C | 1225468 |
| 38 | Serviceventil PCB381A092 | 1221846 |
| 40 | Ölwannenheizung PCA541B031 | M88914 |
| 41 | Ölwannenheizung PCA541B031A | M88915 |
| 42 | Gummidämpfer SSA941C356 | 1220350 |
| 43 | Flanschmutter SSA914C013 | 20001068 |
| 44 | Unterlegscheibe SSA915H039A | 1222889 |
| 46 | Klemmenblock ASA561B002 | M88351 |
| 48 | Verdichterisolierung PCA151D034 | M88440 |
| 49 | Isolierung PCB151D088A | M88400 |
| 50 | Isolierung PCB151D100 | M88399 |
| 51 | Unterkühlregister BG PCB303A030 | 1221373 |
| 52 | Elektr. Expansionsventil SSA387F045A | M68034 |
| 53 | Filter SSA357A055 | 1220351 |
| 54 | Magnetventilspule SSA382F212AB | 20002277 |
| 55 | Magnetventilspule BG PCB382F119BD | M88814 |
| 56 | Magnetventilspule BG PCB382F119BF | M88815 |
| 57 | Magnetventilspule BG PCB382F119BL | M88817 |
| 58 | Magnetventilspule BG PCB382F119BP | 1220025 |
| 59 | Magnetventilspule BG PCB382F119BG | 1220026 |
| 60 | 2-Wege-Ventil SSA382A273 | 1221847 |
| 60-62 | Ventil BG PCB382A203C | 1221449 |
| 62 | Filter SSA357A005A | M57775 |
| 63 | Magnetventilspule BG PCB382F119BK | 1220027 |
| 64 | Kabelsatz PCB504A338D | M88819 |
| 65 | Kabelsatz PCB504A338C | M88820 |
